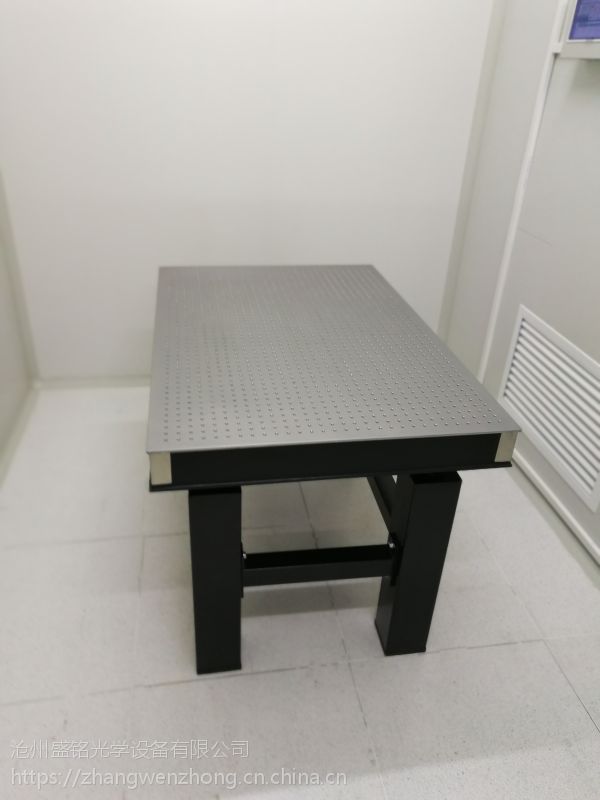

本产品工作表面采用***高导磁不锈钢机膜板面；粗糙度不大于0.8um，平面度不大于0.08mm/平方米，台面上的孔为铅直螺纹孔（公制M6孔，孔距为25毫米），端口为沉孔以去除毛刺,台面亚光处理。底部采用***中碳钢蜂窝结构，隔振层面，固有频率低，隔振性能好；***重碳隔板，性能好。表面静电喷涂：黑色外表面；
平台台体厚度60mm，宽800mm, 长1200 mm，离地总高度800mm。

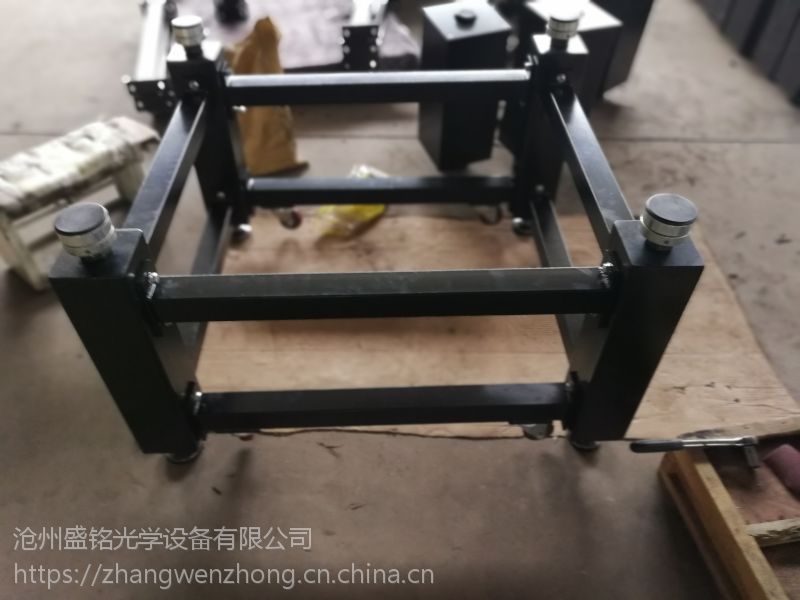

底腿采用80*80方管焊接成型，整体为组装式，便于运输和安装。表面静电喷涂：黑色外表面；整体高度上下可调30mm。承80公斤
MOT series optical isolation platform: simple structure, stable and reliable, suitable for the experimental site with good vibration environment
Application area:
It is suitable for precision instrument production and testing, medical experiment, biotechnology, aerospace experiment and other fields.
This product is composed of upper panel, middle density honeycomb and bottom carbon steel plate with three-layer structure welding. The roughness is no more than 0.8um, the planeness is no more than 0.05mm/ m2, the natural frequency (3-5) Hz. The seismic amplitude is less than 5um. High quality medium carbon steel honeycomb structure with low natural frequency and good isolation performance is adopted at the bottom. High quality medium carbon separator, good performance. Surface electrostatic spraying: black surface; The side of the platform has special material to do adornment, four corners do adornment for drawing stainless steel.
The platform body thickness is 200mm, 1200mm wide, 1800 mm long and 800mm from the ground.
The bottom leg is formed by welding of 200*200 square pipes, and the whole is assembled, which is convenient for transportation and installation. The mounting connection is 60*60 square tubes and 4 are fixed with M12 square screws. Surface electrostatic spraying: black surface; The whole height can be adjusted up and down by 20 mm. Special shock absorber is selected between the bottom leg and the platform to minimize the resonance. Maximum bearing 800 kg.
本产品工作表面采用***高导磁不锈钢机膜板面；粗糙度不大于0.8um，平面度不大于0.08mm/平方米，台面上的孔为铅直螺纹孔（公制M6孔，孔距为25毫米），端口为沉孔以去除毛刺,台面亚光处理。底部采用***中碳钢蜂窝结构，隔振层面，固有频率低，隔振性能好；***重碳隔板，性能好。表面静电喷涂：黑色外表面；
平台台体厚度60mm，宽800mm, 长1200 mm，离地总高度800mm。
底腿采用80*80方管焊接成型，整体为组装式，便于运输和安装。表面静电喷涂：黑色外表面；整体高度上下可调30mm。承80公斤
MOT series optical isolation platform: simple structure, stable and reliable, suitable for the experimental site with good vibration environment
Application area:
It is suitable for precision instrument production and testing, medical experiment, biotechnology, aerospace experiment and other fields.
This product is composed of upper panel, middle density honeycomb and bottom carbon steel plate with three-layer structure welding. The roughness is no more than 0.8um, the planeness is no more than 0.05mm/ m2, the natural frequency (3-5) Hz. The seismic amplitude is less than 5um. High quality medium carbon steel honeycomb structure with low natural frequency and good isolation performance is adopted at the bottom. High quality medium carbon separator, good performance. Surface electrostatic spraying: black surface; The side of the platform has special material to do adornment, four corners do adornment for drawing stainless steel.
The platform body thickness is 200mm, 1200mm wide, 1800 mm long and 800mm from the ground.
The bottom leg is formed by welding of 200*200 square pipes, and the whole is assembled, which is convenient for transportation and installation. The mounting connection is 60*60 square tubes and 4 are fixed with M12 square screws. Surface electrostatic spraying: black surface; The whole height can be adjusted up and down by 20 mm. Special shock absorber is selected between the bottom leg and the platform to minimize the resonance. Maximum bearing 800 kg.
